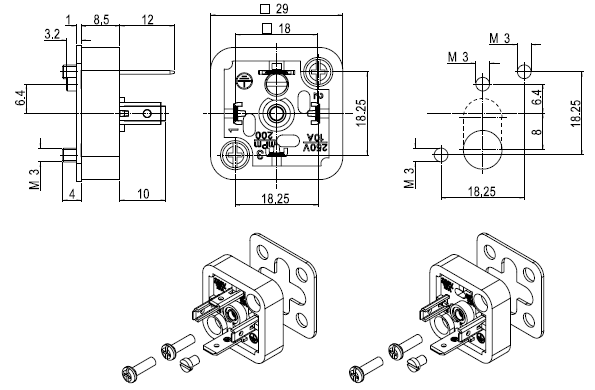

code	B202000N2	B203000N2
standard order no.	121012-0013	121012-0019
nominal voltage	25.0V AC/300V DC
Poles	2 + Ground	3 + Ground
max. Wire sect.	1.00mm 2
mate with	Form A 2 Poles	Form A 3 Poles
Base with external fixing screw for assembly on flat surface. This base allow to solder wire in front or back of the base.

MPM參數表

code	B26.2000N2	B26.3000N2
standard order no.	121012-0071	121012-0076.
nominal voltage	25.0V AC/300V DC
Poles	2 + Ground	3 + Ground
max. Wire sect.	1.00mm 2
mate with	Form A 2 Poles	Form A 3 Poles
Base with external fixing screw for assembly on flat surface.

MPM選型表

code	B28.2000N2	B28.3000N2
standard order no.	121012-0095.	121012-0099
nominal voltage	25.0V AC/300V DC
Poles	2 + Ground	3 + Ground
max. Wire sect.	1.00mm 2
mate with	Form A 2 Poles	Form A 3 Poles
Base with external fixing screw for assembly on flat surface.

尺寸圖

code	B142000N2	B143000N2
standard order no.	121012-0006.	121012-0007
code	B042000N2	B043000N2
standard order no.	121012-0001	121012-0003
nominal voltage	25.0V AC/300V DC
Poles	2 + Ground	3 + Ground
max. Wire sect.	1.00mm 2
mate with	Form A 2 Poles	Form A 3 Poles

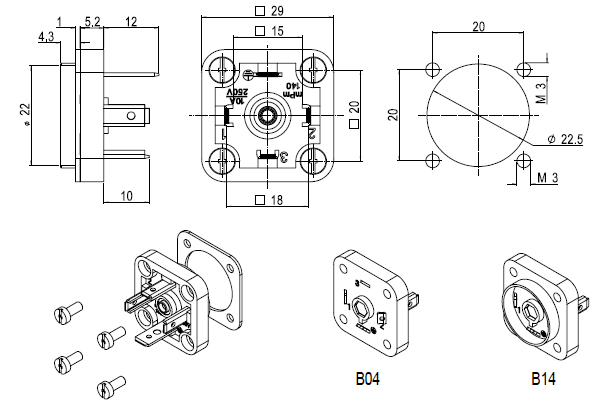

Base with external fixing screw for assembly on flat surface with hole max. Diam. 22,5.mm.
