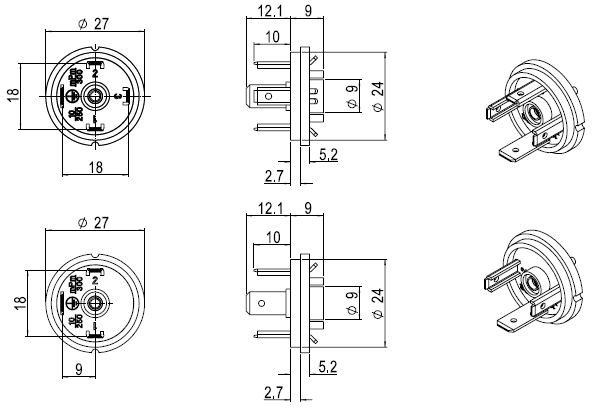

code	B302000N0	B303000N0
standard order no.	121012-0112	121012-0114
nominal voltage	25.0V AC/300V DC
Poles	2 + Ground	3 + Ground
max. Wire sect.	1.00mm 2
mate with	Form A 2 Poles	Form A 3 Poles
Base can be molded directly with the coil or assembled into the application.

MPM參數表

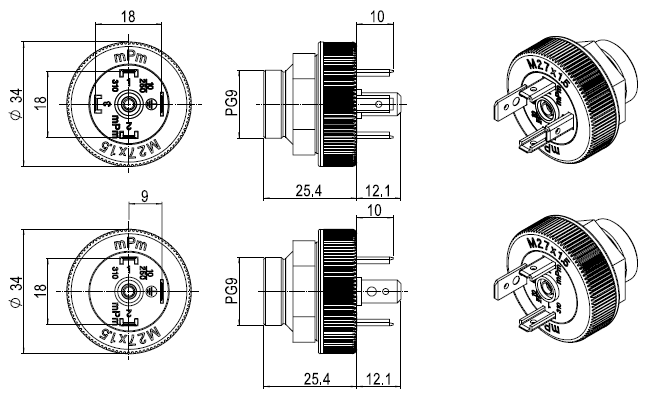

code	B312P09N0	B313P09N0
standard order no.	121012-0117	121012-0121
nominal voltage	25.0V AC/300V DC
Poles	2 + Ground	3 + Ground
max. Wire sect.	1.00mm 2
mate with	Form A 2 Poles	Form A 3 Poles
Base allowed to assembled using a PG 9 thread.

MPM選型表

code	B312P11N0	B313P11N0
standard order no.	121012-0118.	121012-0122
nominal voltage	25.0V AC/300V DC
Poles	2 + Ground	3 + Ground
max. Wire sect.	1.00mm 2
mate with	Form A 2 Poles	Form A 3 Poles
Base allowed to assembled using a PG 11 thread.

尺寸圖

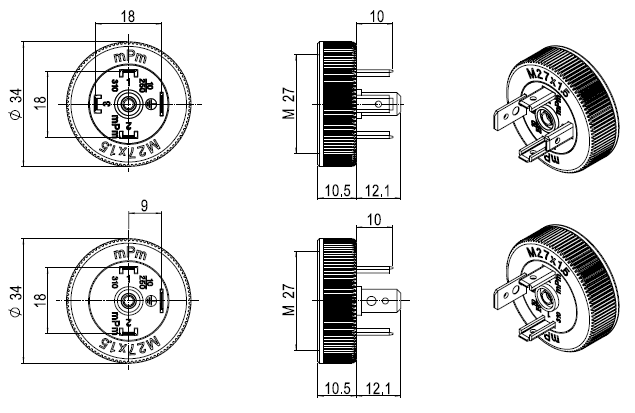

code	B312M27N0	B313M27N0
standard order no.	121012-0116.	121012-0120
nominal voltage	25.0V AC/300V DC
Poles	2 + Ground	3 + Ground
max. Wire sect.	1.00mm 2
mate with	Form A 2 Poles	Form A 3 Poles
Base allowed to assembled using a lock fixing nut M27 thread.
